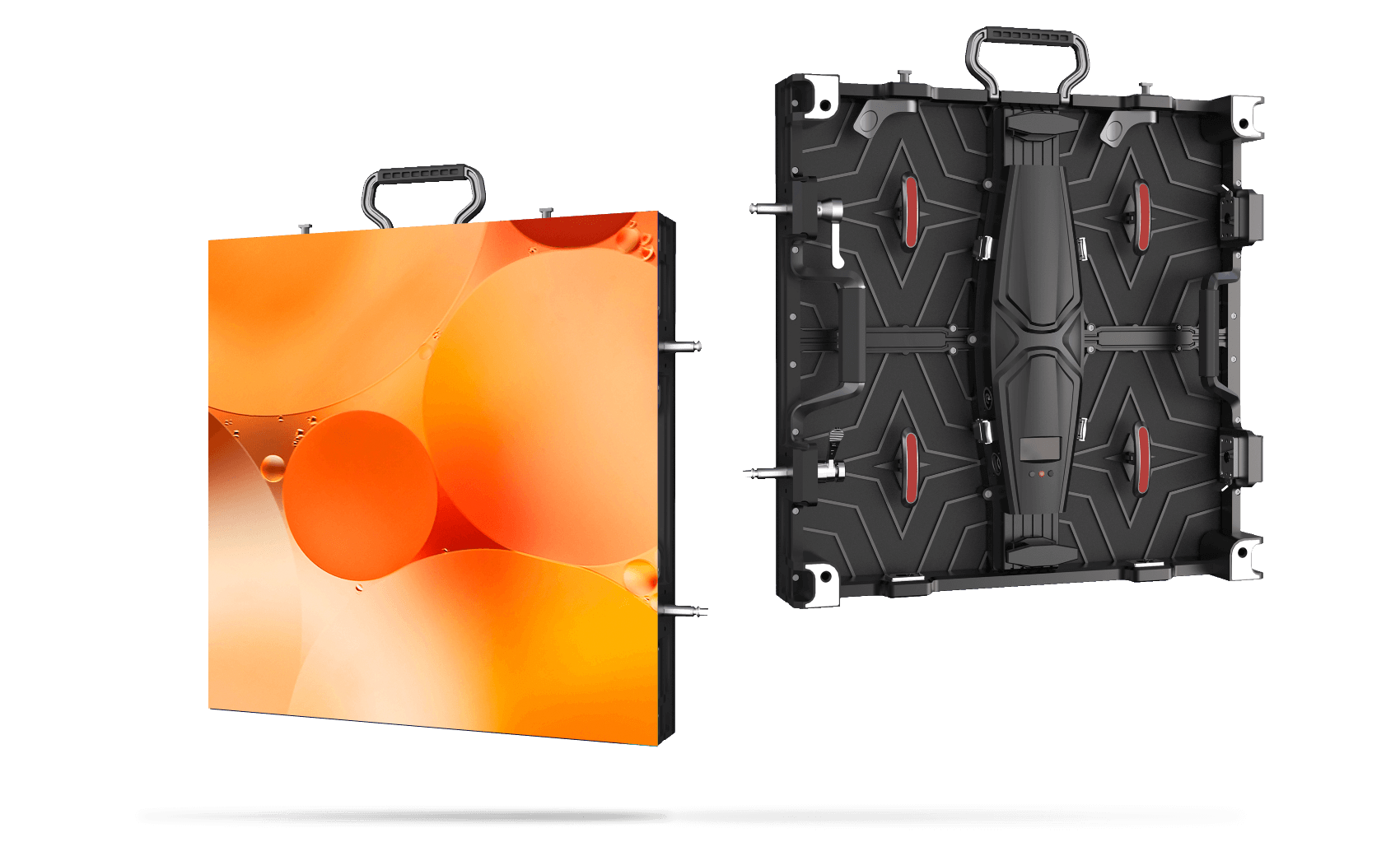

GALAXY AIR
GALAXY AIR rental series offers an impressive display experience with high refresh frequency, brightness, and contrast ratios. Its fast installation and compatibility with various installation methods, including curved configurations, provide flexibility and creativity. The lightweight die-cast magnesium design enhances portability, while the front and rear maintenance options lower operation costs and increase efficiency. The display system's compatibility with multiple installation techniques and optional accessories allows for customized setups to meet specific requirements.

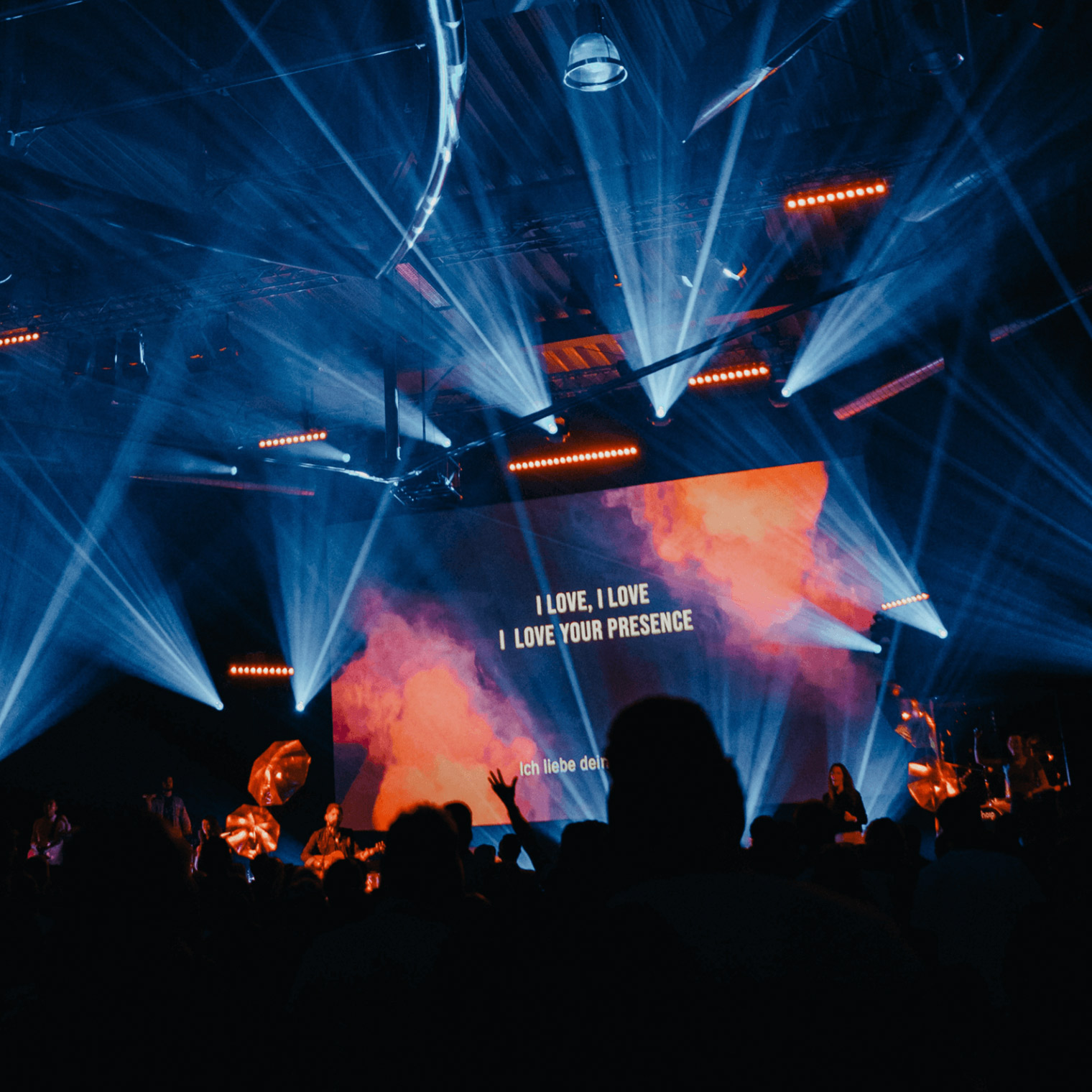

Remarkable Display Effect
The GALAXY AIR rental series provides a high refresh frequency of 3840Hz, ensuring smooth and flicker-free visuals. With a brightness level of more than 1000 nits, the display remains clear and visible even in bright environments. Additionally, it delivers ultra-high contrast ratios of 5000:1, enhancing the visual impact and depth of the content displayed.
Quick Installation and Creative Curved Installation
The display system features a fast lock design, enabling for fast and easy 1 man installation with ultimate safty and pixel protection.. It supports various installation methods, including seat bracket installation and wall-mounting. Moreover, the GALAXY AIR rental series supports both concave and convex installations, allowing for creative curved configurations to suit different needs.

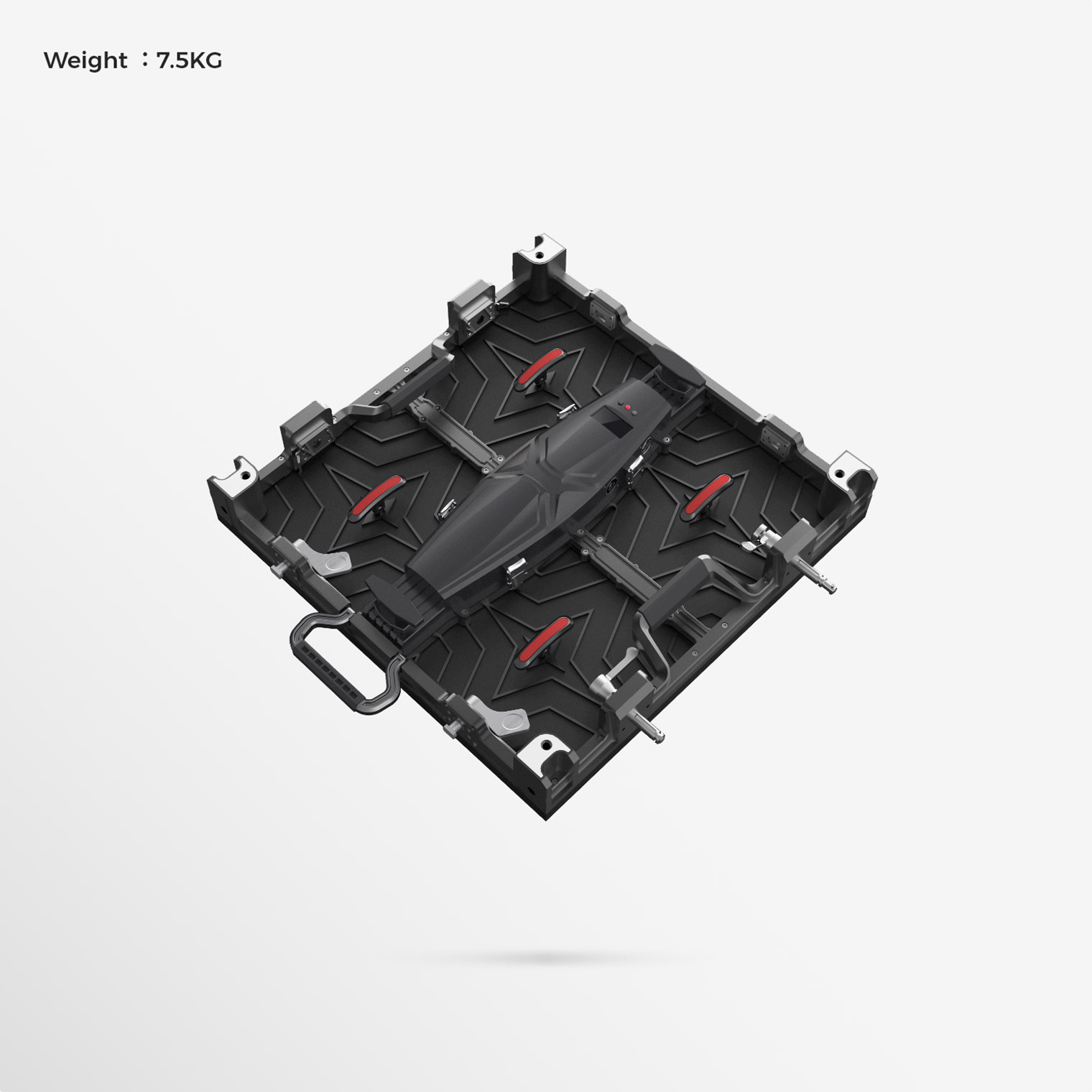

Lighter, Die-Cast Magnesium Design
The display cabinet of the GALAXY AIR rental series is constructed with a lightweight die-cast magnesium material. Weighing only 7.5kg, it is 30% lighter than the average display cabinet. This lightweight design offers easier handling, transportation, and installation, making it convenient for rental applications.

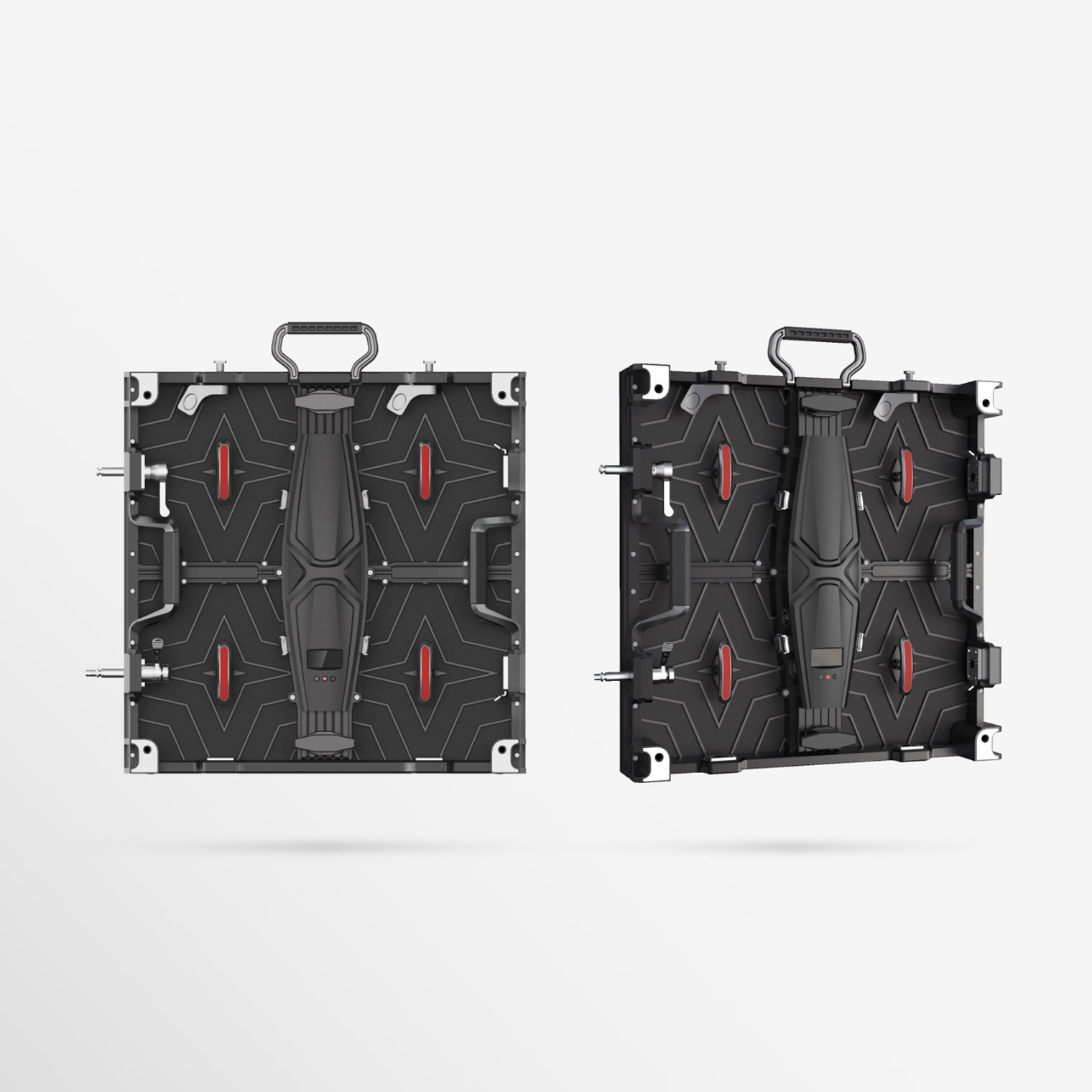

Convenient Front & Rear Maintenance
The GALAXY AIR rental series is designed with front and rear maintenance options in mind. This design allows for easy access to components, reducing operation costs and enhancing overall efficiency. Maintenance tasks can be performed quickly and conveniently, minimizing downtime.

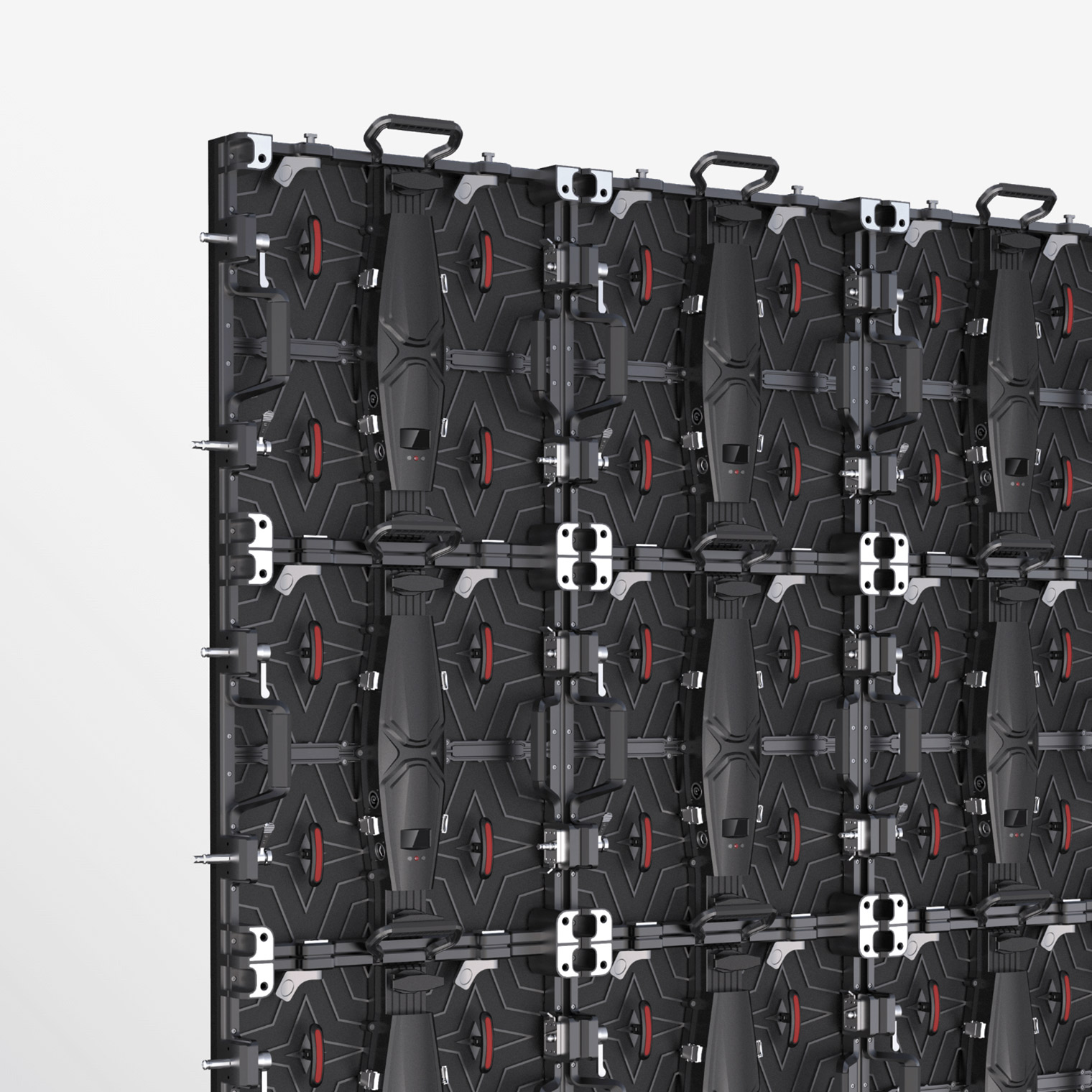

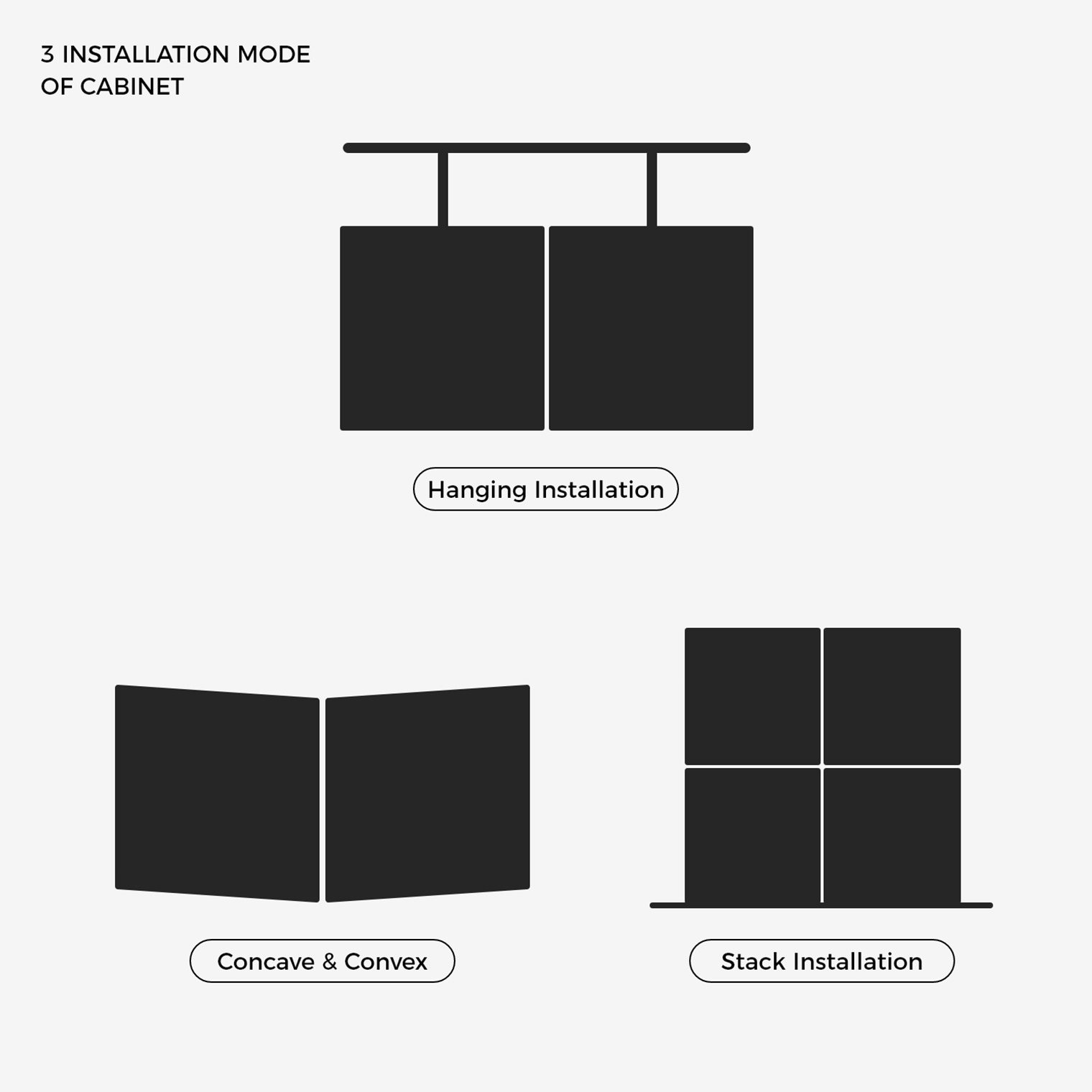

Multiple Installation Methods
The GALAXY AIR rental series is compatible with various installation techniques. It can be hung, stacked, or installed on the ceiling, providing flexibility in meeting different installation requirements. Optional accessories are available to further customize the LED display, allowing for versatile and tailored setups.
Specifications
1.56 / 1.95 / 2.5 / 2.9 / 3.91
| Titie | 1.56 | 1.95 |
2.5 | 2.9 | 3.91 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pixel Pitch | 1.56mm | 1.95mm | 2.5mm | 2.9mm | 3.91mm | ||||||||
| LED Configuration | SMD1212 GOB | SMD1515 | SMD1515 | SMD1515 | SMD2020 | ||||||||
| Max Brightness Calibrated | 1000nits | 1000nits | 1000nits | 1000nits | 1000nits | ||||||||
| Panel Dimension | 500*500*84mm | 500*500*84mm | 500*500*84mm | 500*500*84mm | 500*500*84mm | ||||||||
| Panel Resolution (H X V) | 320 x 320 | 256 x 256 | 192 x 192 | 168 x 168 | 128 x 128 | ||||||||
| Weight Per Panel | 7.5kg | 7.5kg | 7.5kg | 7.5kg | 7.5kg | ||||||||
| Power Consumption Max / Average w/m² | 600W / 200W | 600W / 200W | 600W / 200W | 600W / 200W | 600W / 200W | ||||||||
| Transparency | Solid | Solid | Solid | Solid | Solid | ||||||||
| Serviceability | Front/Rear | Front | Front | Front | Front | ||||||||
| Viewing Angle Vertical | 160° | 160° | 160° | 160° | 160° | ||||||||
| Viewing Angle Horizontal | 160° | 160° | 160° | 160° | 160° | ||||||||
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | ||||||||
| Gray Scale | 16bit | 16bit | 16bit | 16bit | 16bit | ||||||||
| Frame Material | Die-casting | Die-casting | Die-casting | Die-casting | Die-casting | ||||||||
| Operational Temp / Humidity | -20°~ 60°C, 10~90% | -20°~ 60°C, 10~90% | -20°~ 60°C, 10~90% | -20°~ 60°C, 10~90% | -20°~ 60°C, 10~90% | ||||||||
| IP Rating | Indoor | Indoor | Indoor | Indoor | Indoor | ||||||||
| Certifications | CE, RoHS, FCC | CE, RoHS, FCC | CE, RoHS, FCC | CE, RoHS, FCC | CE, RoHS, FCC | ||||||||

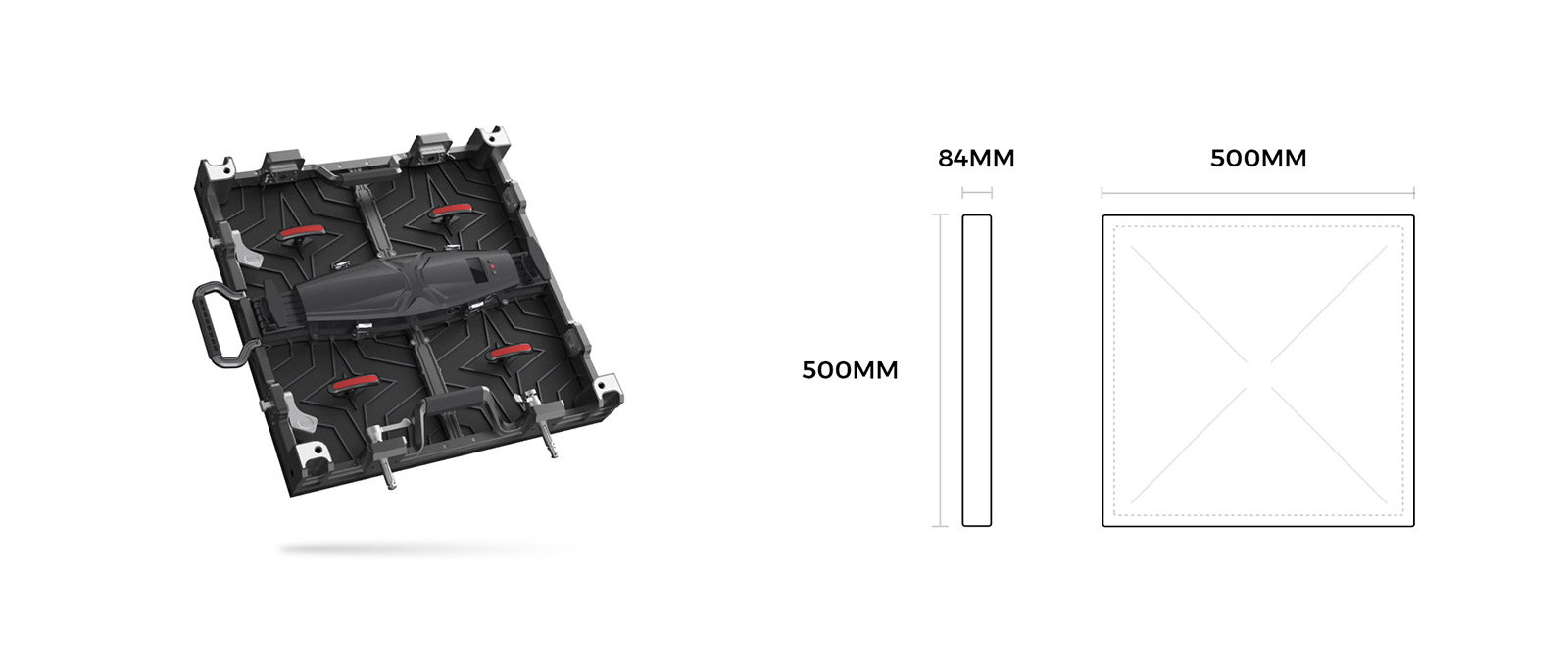

Dimensions
Application scenario
-
Touring
-
Concert
-
Events
