AURORA FORCE
Aurora Force DOOH is a high-performance outdoor display tailored for digital out-of-home advertising. It provides high brightness, all-weather protection, excellent heat dissipation, and energy savings. The ultra-thin panel design and flexible installation options ensure a sleek appearance and convenient setup. With its advanced features, the Aurora Force DOOH is an ideal choice for impactful and engaging outdoor advertising campaigns.
High Brightness
high brightness of 6500 nits, ensuring excellent visibility even in bright outdoor environments. This high brightness level allows for clear and vibrant advertising content, grabbing the attention of viewers.
High Protection All-Weather Friendly, designed to withstand various weather conditions. It is waterproof, moisture-proof, and dust-proof with an IP65 rating, providing reliable performance even in challenging outdoor environments.
Excellent Heat Dissipation and Energy Savings
The display incorporates an efficient heat dissipation system, ensuring optimal operating temperatures and extending the lifespan of the display. also offers energy savings of up to 40%, contributing to lower operating costs and reduced environmental impact.

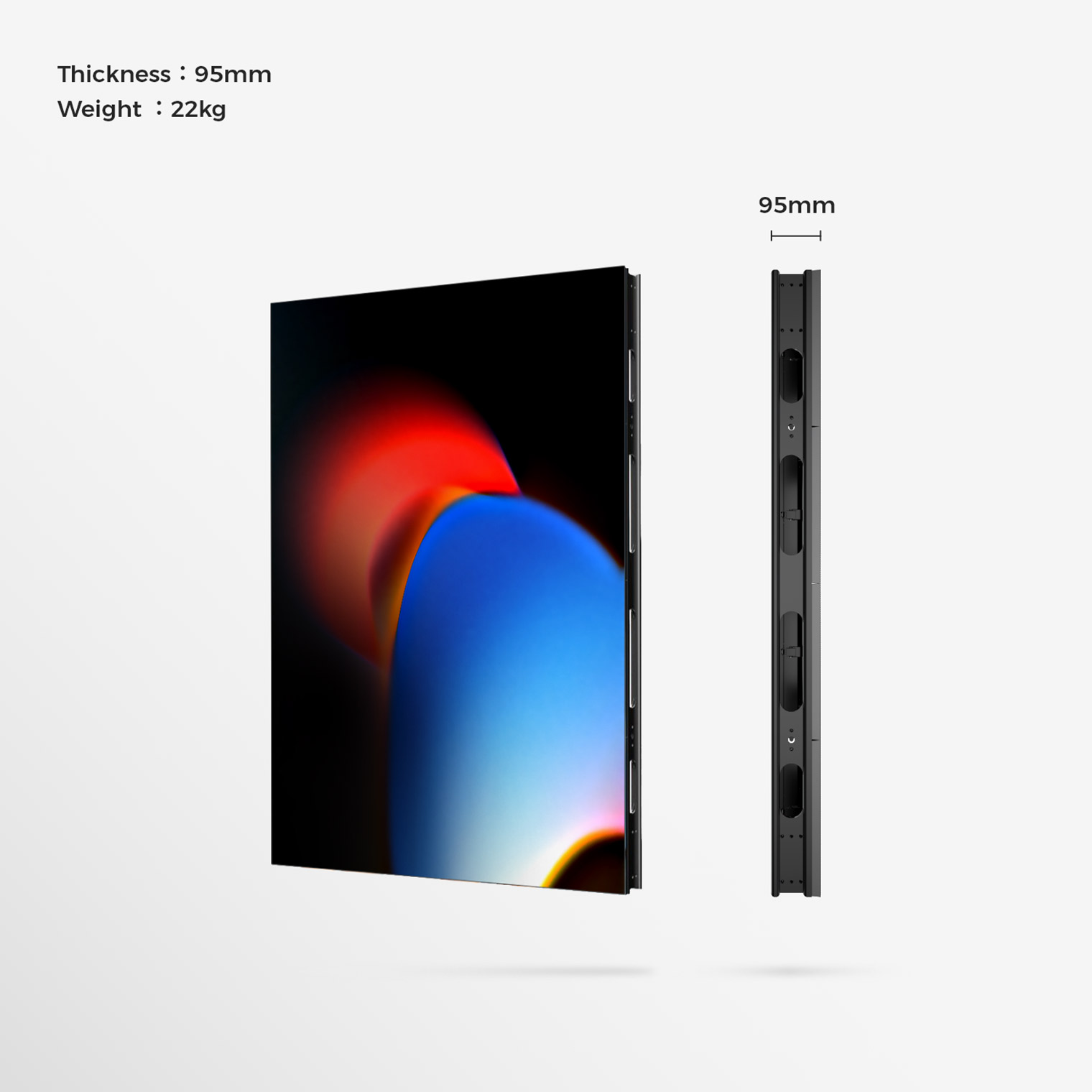

Features an ultra-thin panel design with a thickness of 95mm. This slim profile allows for a sleek and modern appearance, minimizing the visual impact on the surroundings. The lightweight nature of the display, with a weight of 22kg/m², makes installation and transportation more convenient.
Flexible Installation Options,offers two sizes to choose from
800*1200MM and 800*900MM. This flexibility allows customers to select the size that best fits their specific needs and installation requirements. In addition, arc or right-angle designs can be made to make the screen more creative and more engaging visual effects.
Specifications
4.16 / 5 / 6.25 / 8.33 / 10
| Titie | 4.16 | 5 | 6.25 | 8.33 | 10 |
|---|---|---|---|---|---|
| Pixel Pitch | 4.16mm | 5mm | 6.25mm | 8.33mm | 10mm |
| LED Configuration | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Max Brightness Calibrated | 6500nits | 6500nits | 6500nits | 6500nits | 6500nits |
| Panel Dimension | 800mm x 1200mm x 95mm | 800mm x 1200mm x 95mm | 800mm x 1200mm x 95mm | 800mm x 1200mm x 95mm | 800mm x 1200mm x 95mm |
| Panel Resolution (H x V) | 192 x 288 | 160 x 240 | 128 x 192 | 96 x 144 | 80 x 120 |
| Weight Per Panel | 22kg | 22kg | 22kg | 22kg | 22kg |
| Power Consumption Max / Average | 750W / 200W | 750W / 200W | 750W / 200W | 750W / 200W | 750W / 200W |
| Transparency | Solid | Solid | Solid | Solid | Solid |
| Serviceability | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| Viewing Angle Vertical | 160° | 160° | 160° | 160° | 160° |
| Viewing Angle Horizontal | 160° | 160° | 160° | 160° | 160° |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Gray Scale | 16bit | 16bit | 16bit | 16bit | 16bit |
| Frame Material | Aluminum frame | Aluminum frame | Aluminum frame | Aluminum frame | Aluminum frame |
| Operational Temp / Humidity | -20°~ 60°C, 10~90% | -20°~ 60°C, 10~90% | -20°~ 60°C, 10~90% | -20°~ 60°C, 10~90% | -20°~ 60°C, 10~90% |
| IP Rating | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| Certifications | CE, RoHS, FCC | CE, RoHS, FCC | CE, RoHS, FCC | CE, RoHS, FCC | CE, RoHS, FCC |
Dimensions
Application Scenario
-

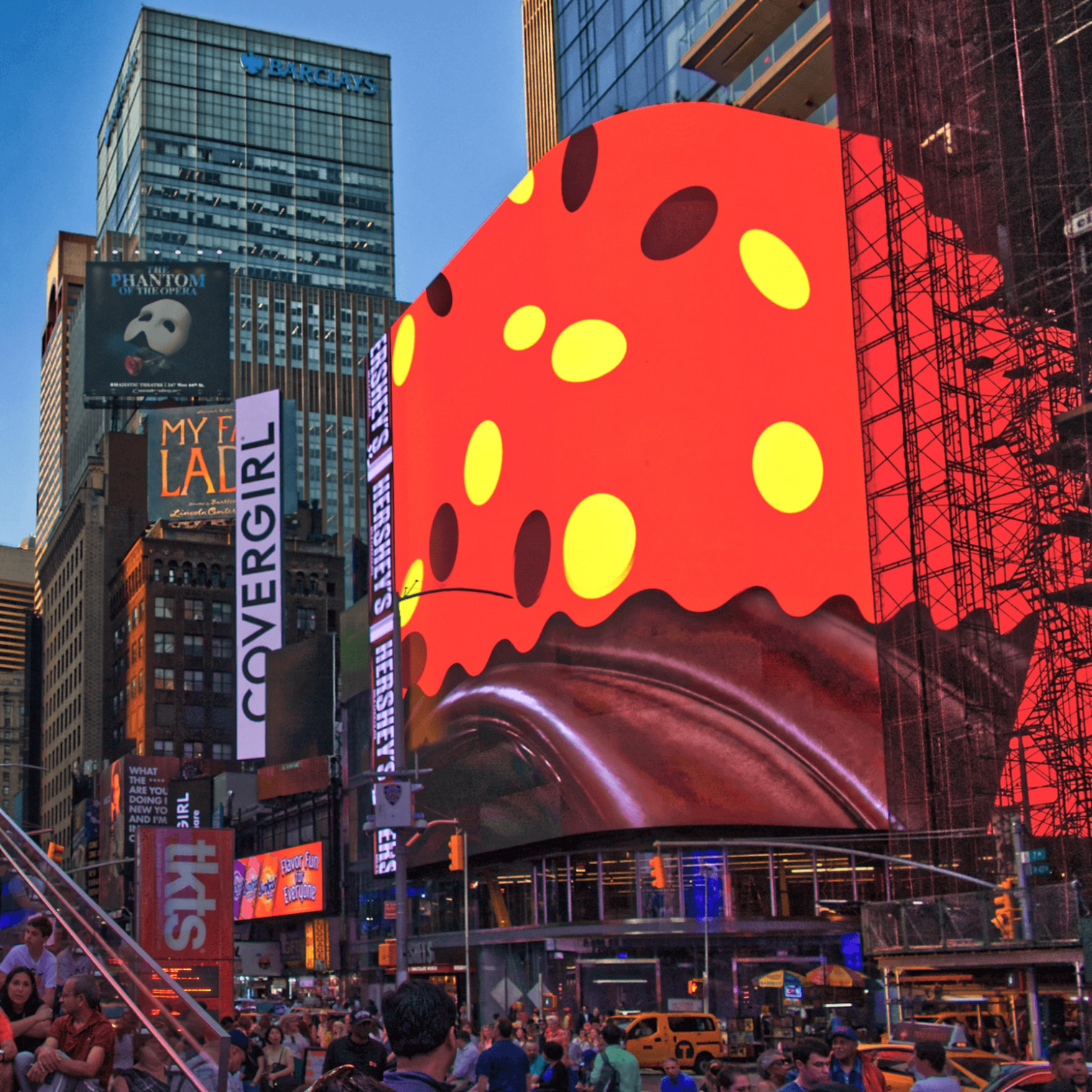

Billboard
-
Digital Sign
-
Sports
