ACE ALL IN ONE
ACE All in One is a user-friendly smart system that simplifies display installation and usage. It supports HDR technology for enhanced contrast and true color reproduction, delivering exceptional image quality. With multiple interfaces and wireless screen projection compatibility, it offers convenient connectivity options. The availability of multiple sizes caters to different display requirements, and the modular design enables easy transportation and flexible installation options.
One-Click Smart System
The ACE All in One comes as a complete kit, including the controller, audio, and all necessary display elements required for installation. This eliminates the need for complex wiring and debugging, making it easy to install and use. With a one-click setup, users can quickly set up the system without any hassle.
HDR Support and Exceptional Image Quality
The ACE All in One supports HDR technology, which optimizes the contrast between light and dark areas and restores true colors, resulting in stunning visual quality. It offers ultra-high resolution and an ultra-wide color gamut, ensuring exceptional image quality with vivid and lifelike visuals.
Provides multiple interfaces, including 3 HDMI ports (2 in and 1 out), 2 USB 2.0 ports, 1 USB 3.0 port, and an RF input. This allows for easy connectivity and compatibility with various terminal devices. The ACE All in One also supports wireless screen projection, enabling convenient mirroring from compatible devices.
ACE All in One is available in multiple sizes, including 108", 136", and 163". These different sizes cater to various display requirements. The 16:9 aspect ratio provides a standard display format that is easy to handle for different content and scenes.
Modular Design and Flexible Installation
The ACE All in One features a modular design that facilitates easy transportation, whether within an office building or in elevators. It can be mounted on a wall or placed on a mobile stand, providing flexibility in terms of installation options. This ensures that the display can be positioned and utilized in various environments according to specific needs.
Specifications
108'' / 136'' / 163''
| Titie | 108'' | 136'' | 163'' |
|---|---|---|---|
| Pixel Pitch | 1.25mm | 1.56mm | 1.87mm |
| LED Configuration | SMD1010 | SMD1010 | SMD1010 |
| Max Brightness Calibrated | 1000nits | 1000nits | 1000nits |
| Screen Dimension | 2430mm x 1475mm x 48mm | 3030mm x 1813mm x 48mm | 3630mm x 2150mm x 48mm |
| Screen Resolution (H x V) | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 |
| Weight Per Panel | 115kg | 180kg | 255kg |
| Signal Input | HDMIx3 USB3.0 USB2.0 RF | HDMIx3 USB3.0 USB2.0 RF | HDMIx3 USB3.0 USB2.0 RF |
| Control System | NOVA MeeUs | NOVA MeeUs | NOVA MeeUs |
| Serviceability | Front | Front | Front |
| Viewing Angle Vertical | 160° | 160° | 160° |
| Viewing Angle Horizontal | 160° | 160° | 160° |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz |
| Gray Scale | 16bit | 16bit | 16bit |
| Frame Material | Die-casting | Die-casting | Die-casting |
| Operational Temp / Humidity | -20°~ 60°C, 10~90% | -20°~ 60°C, 10~90% | -20°~ 60°C, 10~90% |
| IP Rating | Indoor | Indoor | Indoor |
| Certifications | CE, RoHS, FCC | CE, RoHS, FCC | CE, RoHS, FCC |

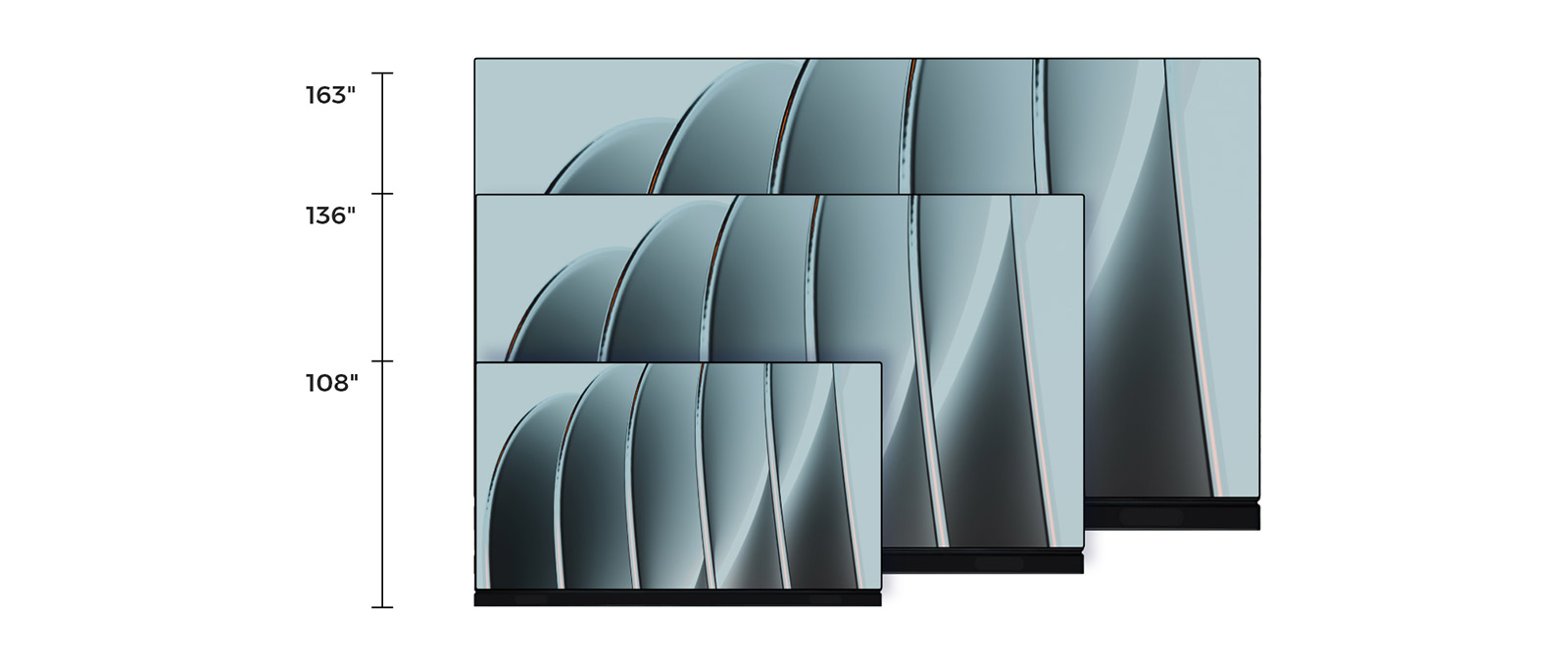

Dimensions
Application Scenario
-
Board room
-
Auditorium
-
Luxury villas
