AURORA PRO
Aurora Pro High-performance outdoor display with exceptional brightness, refresh rate, and gray scale. It offers energy efficiency, durability, and a slim design, making it suitable for various application scenarios such as billboards, spectacular displays, street furniture, digital signage, transit centers, and sports venues.
Max 10000nit High Brightness, ensuring dedicated visibility of images even under strong direct sunlight. It delivers clear and bright visuals, maintaining excellent display quality in challenging outdoor environments. The display also offers a longer life cycle and excellent durability, making it suitable for continuous outdoor operation.
High Protection All-Weather Friendly,designed to be waterproof, moisture-proof, and dust-proof with an IP65 rating. It can withstand various weather conditions, including sun and rain. This high level of protection ensures reliable and consistent performance, making it suitable for outdoor installations.
Energy-Saving LED Display, utilizes common cathode technology, resulting in energy savings of up to 45%. It has low power consumption and low heat dissipation, making it an energy-efficient choice. The display's longer lifespan also contributes to reduced maintenance and replacement costs.
Ultra Thin and Light Panel
an ultra-thin panel design with a thickness of 83mm and a weight of 22kg/m². This slim and lightweight construction makes transportation and installation more convenient, saving on transport costs. Additionally, the display's reduced weight puts less strain on the supporting steel frame, making it a cost-effective option.

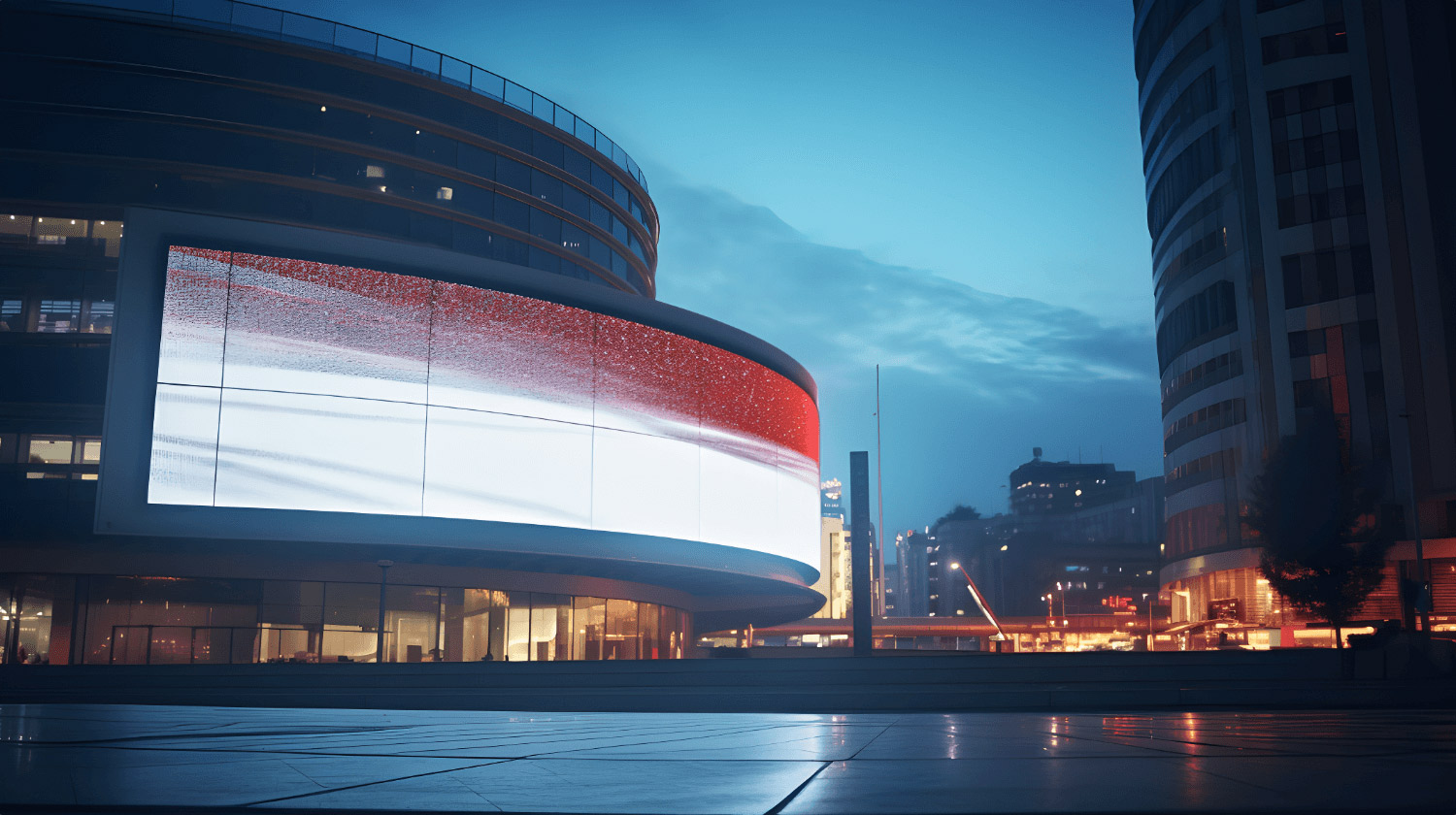

Aurora Pro is suitable for arc splicing of various angles, allowing for creative and customized display configurations. It also supports naked eye 3D projects, providing an immersive visual experience without the need for 3D glasses.
Specifications
3.91 / 4.81 / 6.25 / 7.81 / 10
Titie | 3.91 | 4.81 | 6.25 | 7.81 | 10 |
---|---|---|---|---|---|
Pixel Pitch | 3.91mm | 4.81mm | 6.25mm | 7.81mm | 10mm |
LED Configuration | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
Max Brightness Calibrated | 10000nits | 10000nits | 10000nits | 10000nits | 10000nits |
Panel Dimension | 1000mm x 1000mm x 83mm | 1000mm x 1000mm x 83mm | 1000mm x 1000mm x 83mm | 1000mm x 1000mm x 83mm | 1000mm x 1000mm x 83mm |
Panel Resolution (H x V) | 256 x 256 | 208 x 208 | 160 x 160 | 128 x 128 | 96 x 96 |
Weight Per Panel | 22kg | 22kg | 22kg | 22kg | 22kg |
Power Consumption Max / Average | 750W / 200W | 750W / 200W | 750W / 200W | 750W / 200W | 750W / 200W |
Transparency | Solid | Solid | Solid | Solid | Solid |
Serviceability | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
Viewing Angle Vertical | 160° | 160° | 160° | 160° | 160° |
Viewing Angle Horizontal | 160° | 160° | 160° | 160° | 160° |
Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
Gray Scale | 16bit | 16bit | 16bit | 16bit | 16bit |
Frame Material | Aluminum frame | Aluminum frame | Aluminum frame | Aluminum frame | Aluminum frame |
Operational Temp / Humidity | -20°~ 60°C, 10~90% | -20°~ 60°C, 10~90% | -20°~ 60°C, 10~90% | -20°~ 60°C, 10~90% | -20°~ 60°C, 10~90% |
IP Rating | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
Certifications | CE, RoHS, FCC | CE, RoHS, FCC | CE, RoHS, FCC | CE, RoHS, FCC | CE, RoHS, FCC |
